800A 3P Ther-Mag Trip MD Frame
Tech Specs
Back To Top| Condition | New Surplus |
|---|---|
| Amperage | 800 Amp |
| Frequency | Ac 50-60Hz |
| Voltage | 600V |
| Manufacturer | Cutler Hammer |
| GTIN | 782114350133 |
| Pole | 3 Pole |
| Frame | MD Frame |
Features
Back To Top-

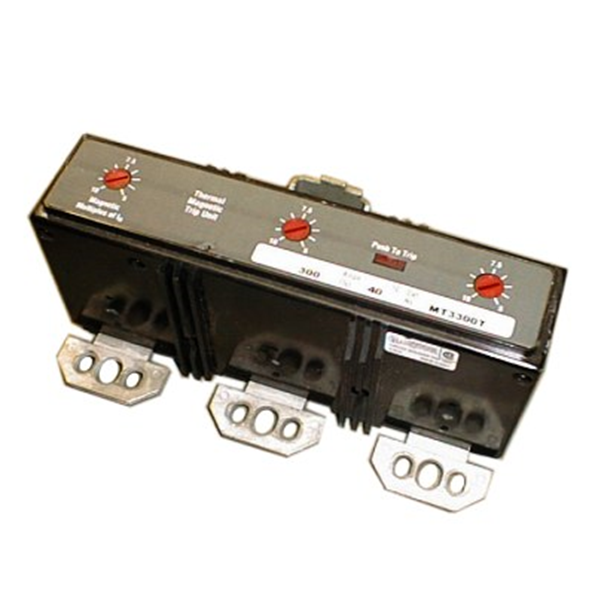

Cutler Hammer MT3800T Thermal Magnetic Molded Case Circuit Breaker Trip Unit.
- 800 Amp
- 3 Pole
- 600 Vac
M Frame Trip Units (300-800 Amp Frame)
M Frame Trip Units for M Frame Molded case circuit breakers which are suitable for reverse feed use and for the circuit protection of low voltage systems and have interchangeable trip units, also suitable for reverse feed use. M frame circuit breakers are HACR rated for Heating, Air- Conditioner, and Refrigeration applications, with the exception of HJDDC Types.
M Frame | ||||
Item Code: | MT3800T | |||
MT | Frame Type | |||
3 | Number of Poles | |||
800 | Circuit Breaker/Frame Amp Rating | |||
T | Suffix | |||
Other Options: | ||||
Frame | Poles | Trip Unit/Rating Plug Amp Rating | Suffix | |
MT | 2 | 300 | T=Trip Unit Thermal-Magnetic | |
MES | 3 | 350 | TV=Trip Unit w/50� Calibration (Thermal Magnetic Trip Units Only) | |
400 | LS=Digitrip RMS 310 Long time/ Short time | |||
450 | LSI=Digitrip RMS 310 Long time/ Short time/ Instantanious | |||
500 | LSG= Digitrip RMS 310 Long time/ Short time/ Ground | |||
600 | LSIG=Digitrip RMS 310 Long time/ Short time/ Instantanious/Ground | |||
700 | ||||
800 |
Interrupting Capacity Rating | |||||
Poles | 240 VAC | 480 VAC | 600 VAC | 250 VDC | |
JD Frame Type | 2,3,4 | 65kAIC | 35kAIC | 18kAIC | 10kAIC |
HJD Frame Type | 2,3,4 | 100kAIC | 65kAIC | 25kAIC | 22kAIC |
JDC Frame Type | 2,3,4 | 200kAIC | 100kAIC | 35kAIC | 22kAIC |
